Continuous Inkjet Printer

Linx CIJ printers put a sharp code on a moving pack without touching it, shift after shift.

Get a quote Specifications

Linx 9000 Series continuous inkjet printer

9.10 m/s

Single-line print speed on the Linx 9840 Midi

6 lines

Of print from one printhead

18 months

Service interval on dye inks, Linx 9840 Midi

5 to 45°C

Operating temperature range

Overview

What it does.

Continuous inkjet is the workhorse of a production line. The printhead sits off the product and jets ink at line speed, so curved bottles, cans, cables, and jars all take a clean code without stopping the conveyor.

Aliment supplies the current Linx 9800 series, including the 9840 Midi and the 9840 Spectrum for pigmented inks, and supports the 8920 and 7900 printers already running on Indian lines. If you run a 5900, which Linx no longer makes, we keep it printing and plan the move to a current model.

Where it fits

PET bottles, cans, and jars
Wires, cables, and extrusions
Coated cartons and labels
High-speed filling lines

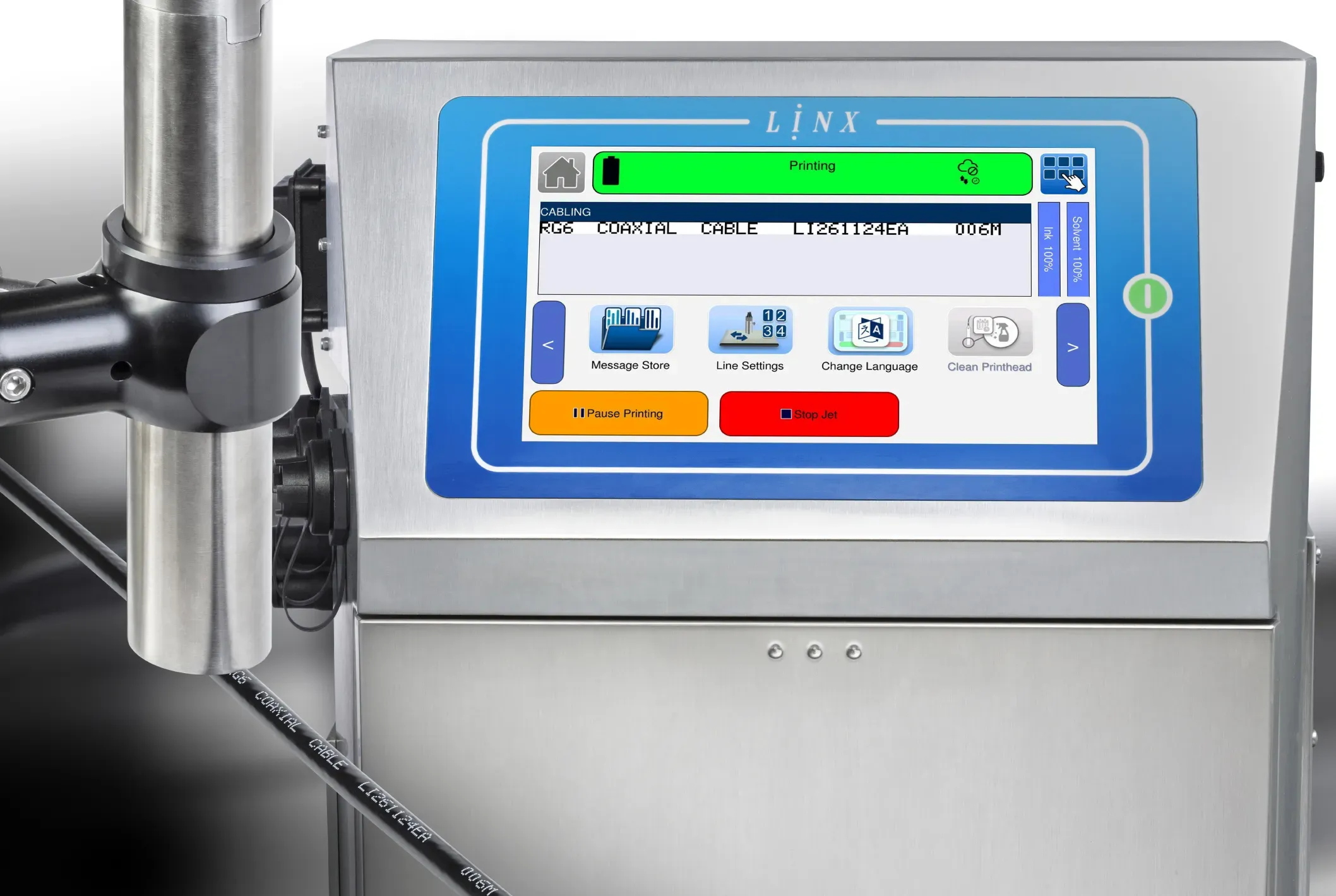

White pigmented CIJ code on black cable — White pigmented code on black cable

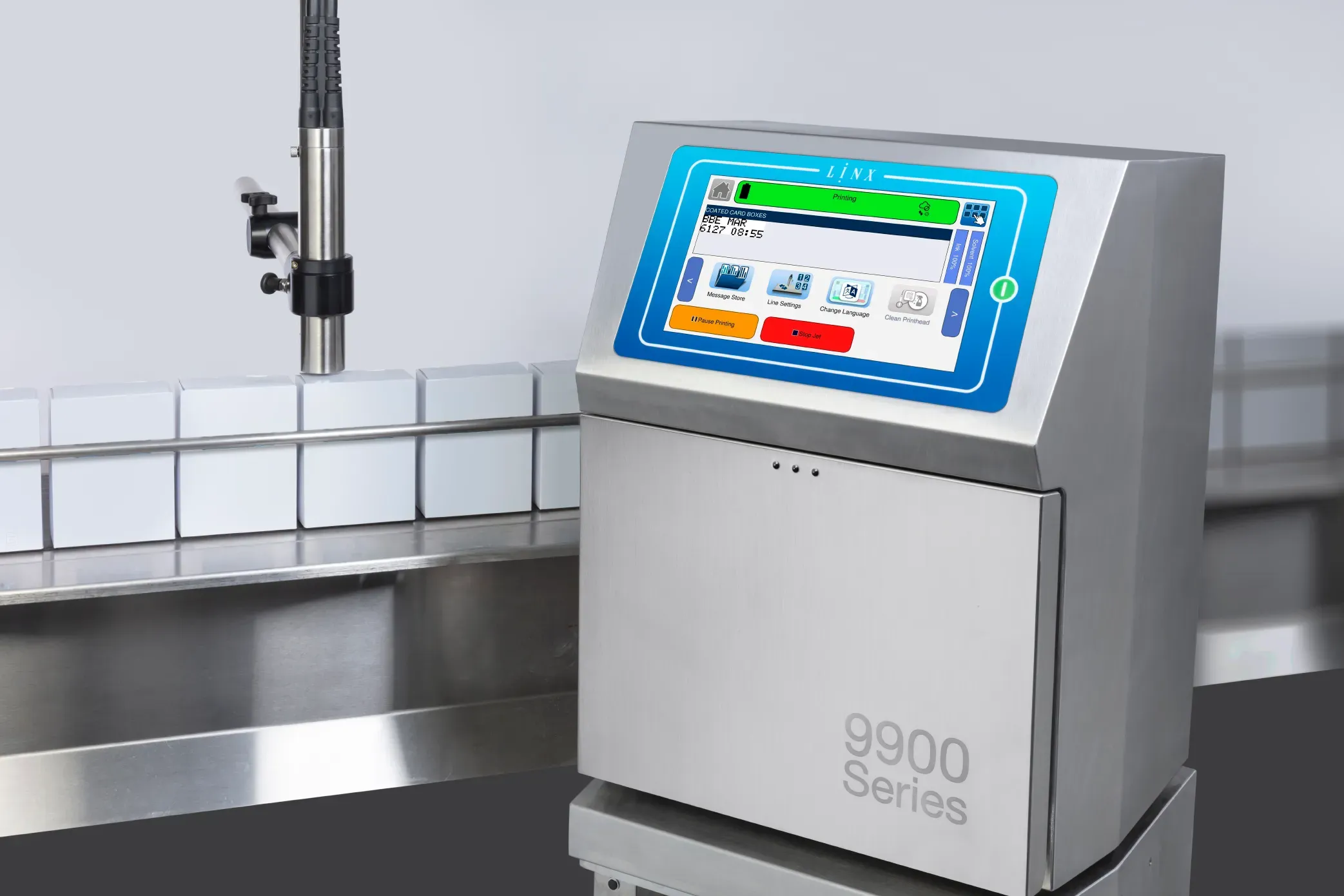

CIJ printer coding coated cartons — Date and time on coated cartons

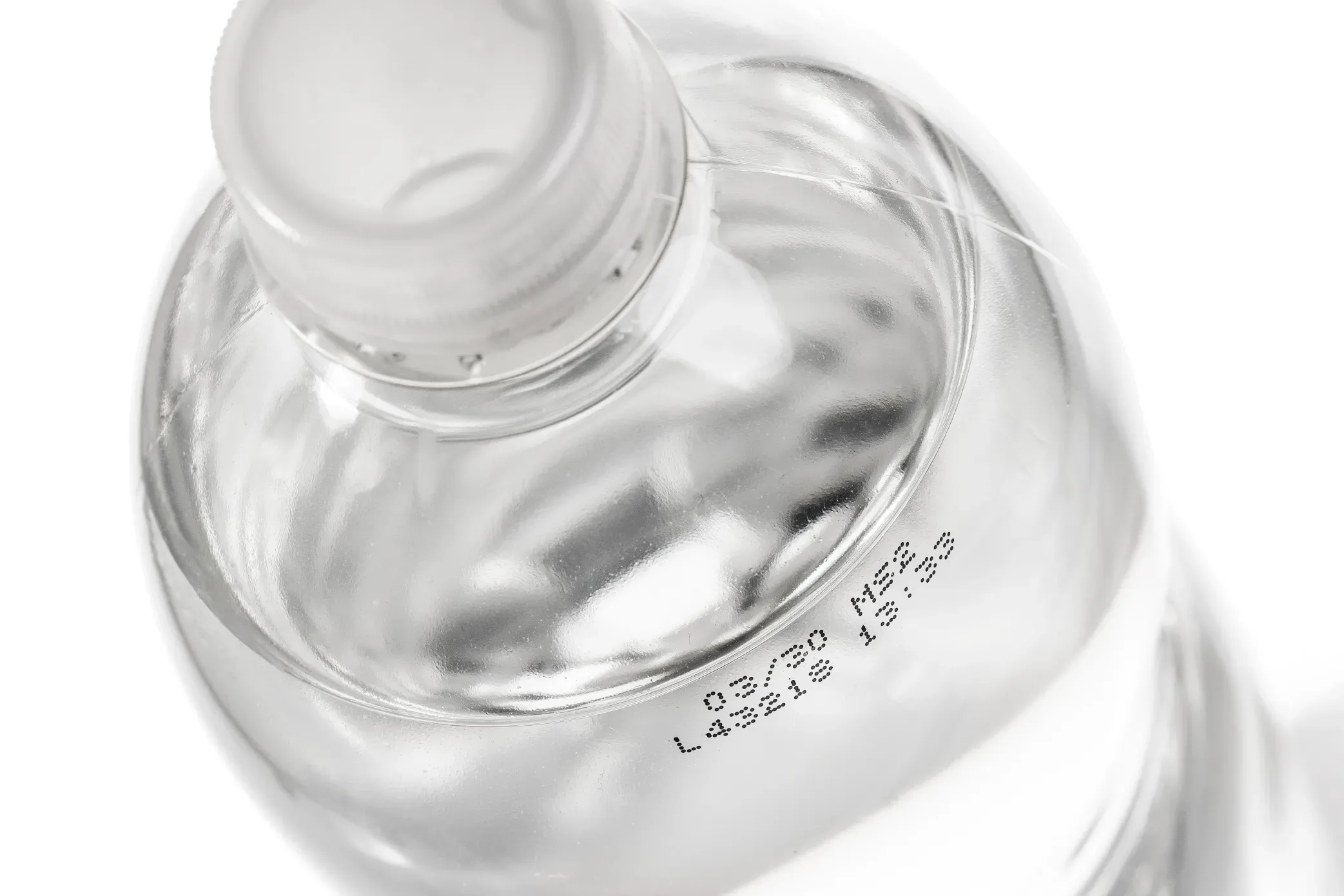

Date and batch code on a PET bottle — Date and batch on PET

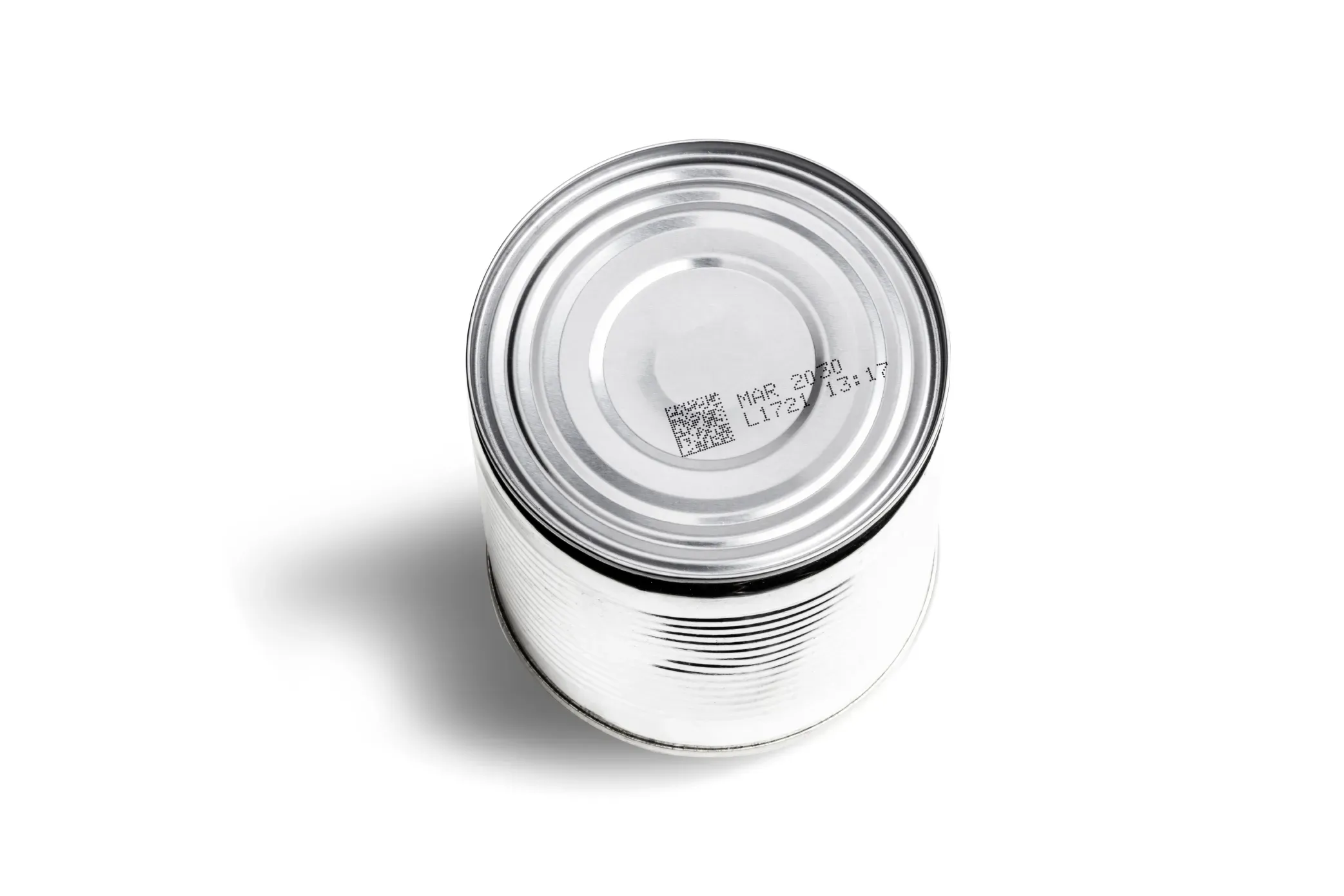

Data Matrix and date code on a steel food tin — Data Matrix and date on a steel tin

Models

Choose the right one.

Linx 9840 Midi

Current

Up to 6 lines at 9.10 m/s single line, 10 m/s in super-fast tower print.
62 μm nozzle, character height 1.2 to 20.1 mm.
Dye and soft-pigment inks. Self-service or engineer visit.
Up to 18 months (13,000 hours) between services on dye.

Linx 9840 Spectrum

Current

Built for hard pigmented white and coloured inks.
75 μm nozzle, character height 1.2 to 17 mm.
Engineer visit only, up to 12 months (8,000 hours) between services.
The choice for black cable, dark plastics, and glass.

Linx 8920

Up to 6 lines, character height 1.8 to 20 mm, up to 7.28 m/s.
10-inch colour touchscreen with Linx PrinterNet.
Easi-Change service module, up to 24 months on dye inks.

Linx 7900 and 7900 Spectrum

Up to 5 lines, print height 1.1 to 13.8 mm, up to 8.41 m/s.
Up to 18 months or 9,000 hours between services.
Spectrum version runs pigmented ink for dark rubber, plastic, and cable.

Linx 5900

Support only

Discontinued by Linx. New lines should start on a current model.
Up to 3 lines, 1.4 to 10.7 mm, at up to 7.28 m/s.
We supply fluids and service, and plan the upgrade.

Specifications

9840 Midi and 9840 Spectrum, side by side.

Source: Linx 9800 Series product overview. A print sample on your pack confirms the result.
	Linx 9840 Midi	Linx 9840 Spectrum
Lines of print	Up to 6	Up to 6
Nozzle	62 μm	75 μm
Character height	1.2 to 20.1 mm	1.2 to 17 mm
Single line, 5 dot	9.10 m/s	9.10 m/s
Super-fast tower print	10 m/s	10 m/s
Two lines, 7 dot	2.65 m/s	2.65 m/s
Servicing	Self-service or engineer visit	Engineer visit only
Service interval	Up to 18 months (13,000 hours) on dye. Up to 12 months (6,000 hours) on soft pigment.	Up to 12 months (8,000 hours)
PrintProtect battery	Standard	Standard
Iris vision	Option	Option
SureClean wash	Option	Option
Screen	7-inch colour touch	7-inch colour touch
PrinterNet	Option	Option
GS1 code builder	Option	Standard
Ink	Dye and soft pigment	Hard pigmented white and colours
Enclosure	Stainless steel	Stainless steel
Operating temperature	5 to 45°C	5 to 45°C
Weight with fluids	21.1 kg	23 kg

Used in

Agro Chemical Automobiles Building and Construction Dairy FMCG Food and Beverages Packing and Packaging Pharma Wires and Cables

Quote

Quote for continuous inkjet printer

Tell us the product, the line speed, and what the code needs to say. We will come back with the right Linx machine and a price.

A reply from a personSomeone who knows coding lines, not a ticket number.
A sample when it mattersSend a few packs and see the code before you buy.
